INCONEL® ALLOY C-276 (2.4819)


INCONEL® ALLOY C-276 (2.4819)

UNS N10276

W.Nr. 2.4819

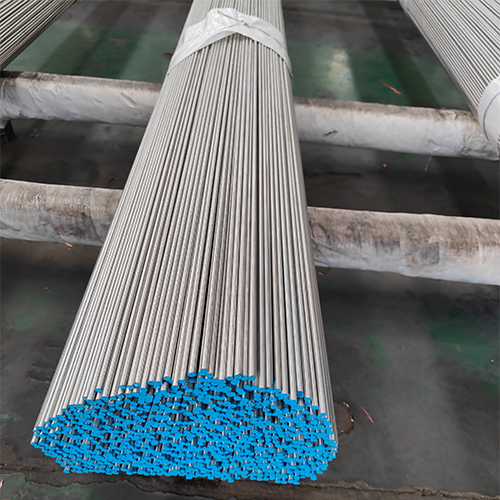

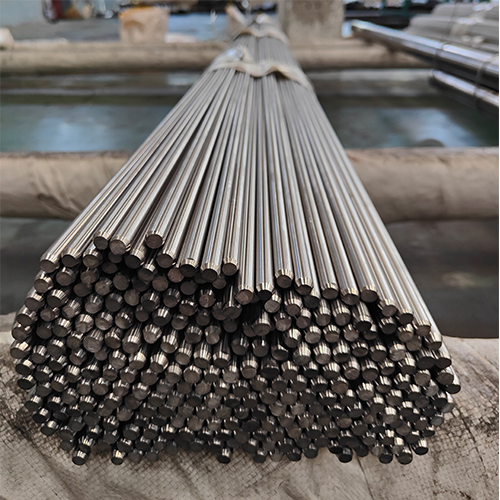

Diameter 2 - 75 mm

INCONEL alloy C-276 (UNS N10276) is known for its corrosion resistance in a wide range of aggressive media. The high molybdenum content imparts resistance to localized corrosion such as pitting. The low carbon minimizes carbide precipitation during welding to maintain resistance to intergranular attack in heat-affected zones of welded joints. It is used in chemical processing, pollution control, pulp and paper production, industrial and municipal waste treatment and the recovery of “sour” natural gas. Applications in air pollution control include stack liners, ducts,dampers, scrubbers, stack-gas re-heaters, fans and fan housings. In chemical processing, the alloy is used for components including heat exchangers, reaction vessels, evaporators and transfer piping.

● Outstanding oxidation resistance through 2000° F

● Resistant to carburization and nitriding

● Excellent high temperature strength

● Good resistance to chloride stress-corrosion cracking

Chemical Composition:

Grade C Si Mn S P Cr Ni Mo Co Fe Others
Inconel C-276 ≤0.01 ≤0.08 ≤1.0 ≤0.03 ≤0.04 14.5-16.5 balance 15.0-17.0 ≤2.5 4.0-7.0 W:3.0-4.5, V≤0.35


Mechanical Properties

Aolly Status

Tensile  strength

Rm Mpa

Min

Yield strength

R P 0. 2 Mpa

Min

Elongation

A 5 %

Min

Solution

690

283

45

Physical Properties

Density g/cm3

Melting Point

8.89

1325~1370
