ER630,UNS S17480,stainless steel,welding wire,welding electrode,welding alloy

ER630 Welding Wire

UNS S17480

Supply Conditions:

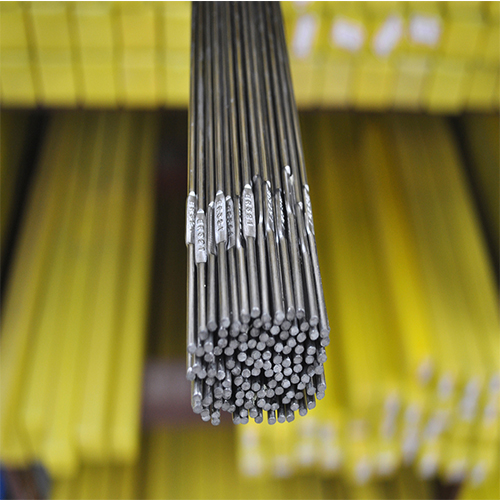

1. Welding Wire(Tig,Mig): 0.8-2.5 mm

2. Semi-finished Wire: 2.0-5.0 mm

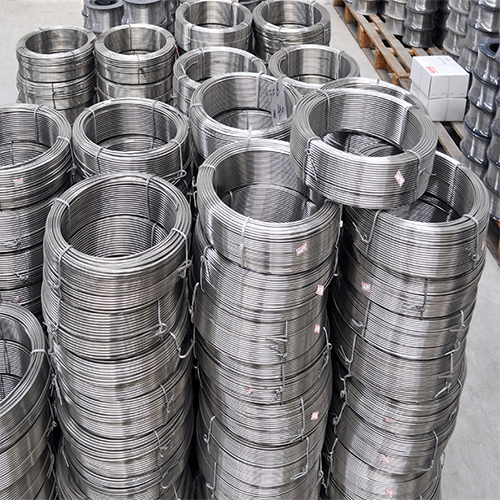

3. Wire Rod: 5.0-20.0 mm

ER630 (17-4PH) is designed primarily for welding precipitation hardening stainless steels; it is modified to prevent the formation of ferrite networks in the martensitic microstructure which have deleterious effect on mechanical properties. ER630 is a precipitation hardening stainless steel that is used in welding high strength stainless steels of similar composition. ER630 properties listed above are greatly influenced by heat treatment.

Standard: AWS A5.9, GB, JIS

Chemical Composition:

Grade C Si Mn S P Cr Ni Mo Cu Others

ER630 ≤0.05 ≤0.75 0.25-0.75 ≤0.03 ≤0.03 16.0-16.75 4.5-5.0 ≤0.75 3.25-4.00 Nb: 0.15-0.30

The chemical composition can be customized (such as C,Si,N,O......)

Supply Conditions :

1. Welding Wire(Tig,Mig): 0.8-2.5 mm

2. Semi-finished Wire: 2.0-5.0 mm

3. Wire Rod: 5.0-20.0 mm
